Cheap Neodymium Strong Permanent Rare Earth Disk Magnet

Short Description:

High Performance Ndfeb Neodymium Magnet N35-N52 (M.H.SH.UH.EH.AH)

Fridge Round Disc High Quality Large Neodymium Magnetic Materials

Rare Earth Metal Small Magnets Support Custom Ndfeb Magnet

Samples And Trial Orders are Most Welcome

Send email to us

Product Detail

Product Tags

HESHENG MAGNET GROUP

Professional Effective Fast

Cheap Neodymium Strong Permanent Rare Earth Disk Magnet

Over the last 15 years Hesheng export 85% of its products to American, European, Asian and African countries. With such wide range of neodymium and permanent magnetic material options, our professional technicians are available to help solve your magnetic needs and choose the most cost effective material for you.

Product Details

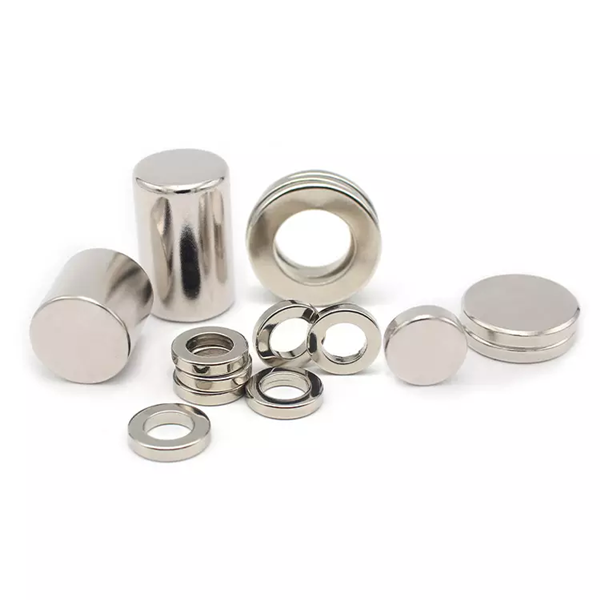

About Disc Neodymium Magnet

Most disc magnets have their north and south pole on the flat circular surface (axial magnetization). The few exceptions, which are diametrically magnetized, are specifically marked.The combination neodymium-iron-boron is currently the strongest available magnet material worldwide. Even with small areas the neodymium disc magnets achieve remarkable holding power, which makes them very versatile.

Product Features

Magnets have enough strength, small size, light weight and have high resistance to demagnetization and belong to fragile product, so be careful during operations. PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Type	Permanent Sintered Neodymium Magnets/Rare Earth Magnet
Material	NdFeB
Shape	Block, Bar, Cube, Disc, Ring, Cylinder, Ball, Arc, Trapezoid, etc
Size	CUSTOMIZED ACCORDING TO CUSTOMER'S REQUEST
Coating	Ni, Zn, Epoxy, Parylene, Gold, Passivated, etc
Density	7.5-7.6 g/cm³
Delivery date	7-10 days for common samples, 15-20 days for mass produciton
Magnetic Grade & Working Temperature	Magnetic Grade	Working Temperature
	N35-N45	80 ℃(176 ℉)
	N48-N52	60 ℃(160 ℉)
	35M-52M	100 ℃(212 ℉)
	33H-50H	120℃(248 ℉)
	33SH-45SH	150 ℃(302 ℉)
	30UH-40UH	180 ℃(356 ℉)
	28EH-38RH	200℃(392 ℉)
	28AH-33AH	220 ℃(428 ℉)

Product Display

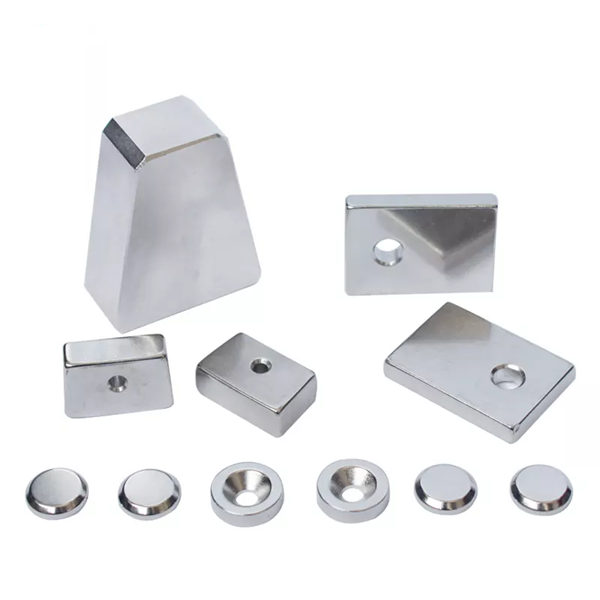

Advanced production equipment and 30 years of production experience can effectively help you customize various shapes! Special shaped magnet (triangle, bread, trapezoid, etc.) also can be customized!

>Neodymium Magnet

>Customized Strong Magnet

We accept customized services: 1) Shape and Dimension Requirements; 2) Material and coating requirements; 3) Processing according to design drawings; 4)Requirements for Magnetization Direction; 5) Magnet Grade Requirements; 6) Surface treatment requirements (plating requirements)

>Magnetization Direction and Coating include

Magnet Coating Types Display

Support all magnet plating , like Ni, Zn, Epoxy , Gold, Silver etc.

Ni Plating Maget: Good anti-oxidation effect, high gloss apprearance,long servie life .

Zn Plating Magnet: Suitable for general requirements on surface appearance and oxidation resistance .

Epoxy Plating Magnet: Black surface, suitable for harsh atmospheric environments and occasions which require high corrosionresistance.

>Our Magnets are Widely Application

1) Electronics – Sensors, hard disk drives, sophisticated switches, electro-mechanical devices etc.;
2) Auto Industry – DC motors (hybrid and electric), small high-performance motors, power steering;
3) Medical – MRI equipment and scanners;
4) Clean Tech Energy – Water flow enhancement, wind turbines;
5) Magnetic Separators – Used for recycling, food and liquids QC, waste removal;
6) Magnetic Bearing – Used for highly sensitive and delicate procedures in various heavy industries.

Our Company

Hesheng magnet group Advantage：

Our company is a specialized supplier and manufacturer of permanent magnets and magnetic assemblies, magnetic motors, etc. Our products include NdFeB magnet, rubber magnet, SmCo magnet, alnico magnet, ferrite magnet, educational magnet, magnetic separator, pot magnet,magnetic lifter, lifting magnet, magnetic badge holder. With over 30 years' history, our factory has established and implemented a quality management system in conformity with ISO9001 standard. All magnet materials and coatings meet the standards of SGS and RoHS. Our factory has passed ISO14001 and TS16949 certificates. Our factory makes high quality magnet to meet our customers' different requirements. Our products sell well in over 50 countries and regions all over the world such as America, the EU, the Middle East, Hong Kong, etc.

Processing and Production Equipment

Step : Raw Material→Cutting→Coating→Magnetizing→Inspection→Packaging

From the raw material to finished product, all the processes are completed in our factory, and are under our strict control.

Quality Inspection Equipment

1> Magnet will be inspected strictly during the production of every process. 2> Every magnet will have a certificate before delivery. 3> Magnetic Flux report and Demagnetization Curve can be offered according to request.

Core Advantage

1> Cutting-Edge TechnologySelf-Developed Key Equipment, Unique Manufacturing Process, Energetic R&D Team.
2> Full Scale Production
3> The Integrated Industry Supply Chain.
4> Outstanding Product.

3> High Consistency

The Cpk of Remanence (Br) and Intrinsic Coercive Force (Hcj) are much higher than 1.67.The Consistency of the surface magnetic field and magnetic flux can be controlled at +/-1%.

4> High Anti-Corrosion

The salt spray test and humidity heat test of the high anti-corrosion coating Nickel+Copper+Epoxy is typically more than 500 hours.

5> Low Weight Loss

PCT: 130°C, humidity 100%, vapor pressure 2.7 bar, 20 days, average low weight loss <2 mg/cm2.

Complete Certificates

Note: Space is limited, please contact us to confirm other certificates.
At the same time, our company can carry out certification for one or more certificates according to your requirements. Please contact us for details

Packing & Sale

1.White inner box.

2.Suitable carton size.

3.Anti-magnetized packaging.

4.We will suggest the best solution of shipment for your reference according to order quantityes.

Payment

Samples: Western Union and Paypal acceptable.Orders: T/T,30% deposit,and the balance before shipment or against copy of B/L. For large order, L/C at sight is acceptable.

Logistics

Small packages are usually delivered by express, such us FedEx,UPS,DHL,EMS,TNT etc. Goods in large quantity are usually delivered by sea or by air.
